Key Specifications
| Connector Series 1 | SMC |
| Connector Gender 1 | Plug |
| Connector Polarity 1 | Standard |
| Connector Angle 1 | Straight |
| Connector Mount Method 1 | None |
| Connector Impedance 1 | 75 Ohm |
| Connector Series 2 | BNC |
| Connector Gender 2 | Male |
| Connector Polarity 2 | Standard |
| Connector Angle 2 | Straight |
| Connector Mount Method 2 | None |
| Connector Impedance 2 | 75 Ohm |
| RF Cable Part Number | ET38344 |
| RF Cable Type | MINI 59 |
| RF Cable Impedance | 75 Ohm |
| Length | 12 inches |
Description

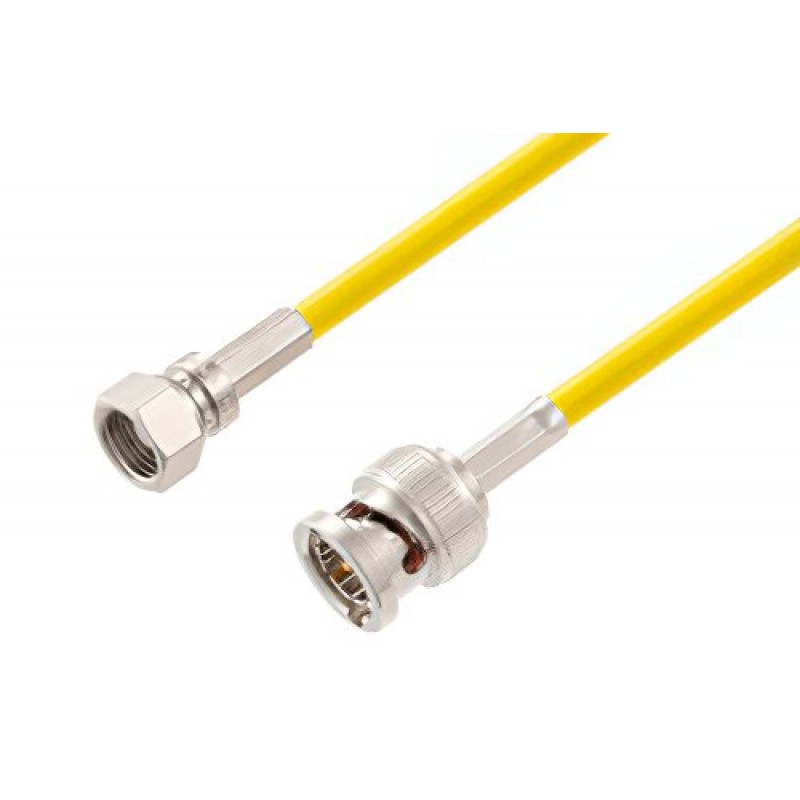

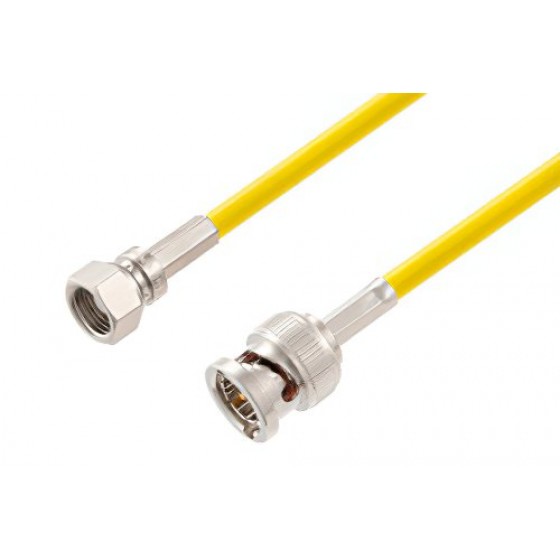

75 Ohm SMC Plug to 75 Ohm BNC Male Cable 12 Inch Length Using 75 Ohm ET38344 Yellow Coax
Radio frequency assembly 75 Ohm SMC plug to 75 Ohm BNC male cable 12 inch length using 75 Ohm ET38344 yellow coax from Ebeestock is part of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Ebeestock coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, general use, etc. 75 Ohm SMC plug to 75 Ohm BNC male cable 12 inch length using 75 Ohm ET38344 yellow coax, like our other Ebeestock coaxial cable assemblies, will ship the same day and any custom SMC to BNC cable assembly orders will ship same day as well.
Ebeestock RF coax cable assembly is built with SMC cable connection on one end and BNC cable connection on the other. Our SMC to BNC cable assemblies have a plug gender on end 1 and male on end 2. This SMC to BNC cable is a plug to male coax assembly, ET31267, can also be known as a SMC male to BNC plug cable assembly and will be shipped same-day as it is purchased.
SMC male to BNC plug cable assembly ET31267 is built with MINI 59 which is a flexible coax type. The Ebeestock flexible SMC cable assembly is manufactured with SMC to BNC cable connectors, has a 75 Ohm impedance and is double shielded. RF specs on this SMC plug to BNC male cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. ET31267 can also be used in the other direction and will be BNC male to SMC plug cable assembly if the opposite connectivity is required.
SMC male to BNC plug cable assembly is just one of more than 45,000 in-stock RF products available. Ebeestock is where to buy a high quality SMC to BNC cable assembly for quick shipment worldwide. Variations of SMC cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Ebeestock is one of the best websites where to find and buy quality RF cable assemblies like this 75 Ohm SMC plug to 75 Ohm BNC male cable 12 inch length using 75 Ohm ET38344 yellow coax.
