Product information
| Package Dimensions | 4.8 x 2 x 0.3 inches |
|---|---|
| Item Weight | 0.35 ounces |
Product features
- Name: high radio frequency coax adapter, reverse polarity SMA male jack (hole) to reverse polarity SMA female plug (pin) right angle coaxial connector
- Help you connect RP SMA female and RP SMA male connector device. Replace and extend the wifi antennas on your outdoor cameras.
- Connector Material: Pure copper with Great connectivity (Not Alloy), Surface treatment: Gold-plated, Impedance: 50 ohm, Low-loss, Temp range: -65 ～+165℃ (PE Cable -40 ～+85℃)
- Application for Antennas, Wireless LAN Devices , RF Coaxial Connector, RF Coaxial cable, Wi-Fi, Radios, External Antenna, Broadcast, Telecom, Microwave Applications, Digital Communication System and so on, >1000 Times Mating Life Time.
- Package included：2 pieces RP-SMA male to RP-SMA female 90 degree coaxial connectors
Product Description

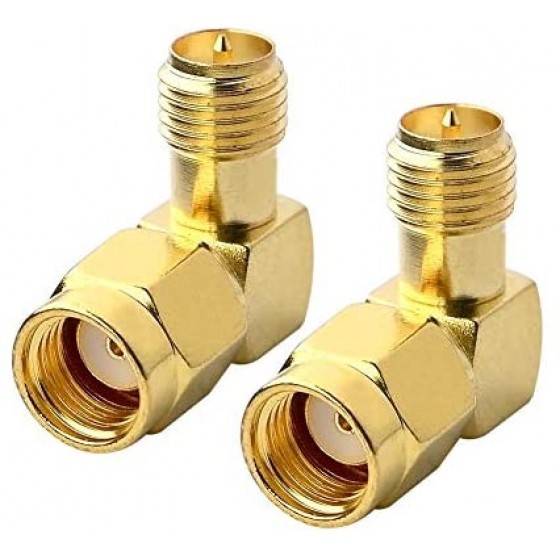

BOOBRIE 90 Degree Reverse Polarity SMA Coax Adapter RP SMA Male (Hole) to RP SMA Female (Pin) Right Angle Connector RP-SMA to RP-SMA Adapter for Audio FPV Drone Antennas Radio Video Mobile Pack of 2
Name: reverse polarity SMA male jack (hole) to reverse polarity SMA female plug (pin) right angle coaxial connector
Connector Material: Pure copper with Great connectivity (Not Alloy)
Surface treatment: Gold-plated
Impedance: 50 ohm, Low-loss
Temp range: -65 ～+165℃ (PE Cable -40 ～+85℃)
Vibration: MIL-STD-202, Method 213
Gender: SMA Plug, male pin + SMA Jack, female pin
Style: Right Angle
Mounting Type: Free hanging
Frequency Range: DC～12.4GHz
Working Voltage: 335V max
Insulation resistance≥ 5000 M Ω
Insertion loss ≤ 0.15 dB/ 6 GHz
Package included：2 pieces RP-SMA male to RP-SMA female coaxial connectors
Help you connect RP-SMA female and RP-SMA male connector device.
Replace and extend the wifi antennas on your outdoor cameras.
Application for Antennas, Wireless LAN Devices , RF Coaxial Connector, RF Coaxial cable, Wi-Fi, Radios, External Antenna, Broadcast, Telecom, Microwave Applications, Digital Communication System and so on, >1000 Times Mating Life Time.
Please confirm what type of connector your device is before purchasing.
