Product information
| Brand | Ebeestock |
| Connector Type | RF Connector |
| Cable Type | Coaxial |
| Compatible Devices | Router, Modem |
| Connector Gender | Male-to-Female |
| Unit Count | 1 Count |
Product features
Product details
- Package Dimensions : 8.62 x 5.55 x 2.09 inches; 1.08 Pounds
- Item model number : 58RG4-15M
- Date First Available : July 26, 2021
- Manufacturer : Ebeestock
- Country of Origin : China
Product Description
Specification
- Cable Type: RG58 coaxial cable
- Length: 49.2ft(15M)
- Impedance: 50 ohm, Low-loss
- Frequency Range: DC-3GHz
- V.S.W.R: ≤ 2
- Voltage: 1000V r.m.s
- Volecity of propagation (10%): 70
- Capacitance (pf/m): 96.45
Package includes?

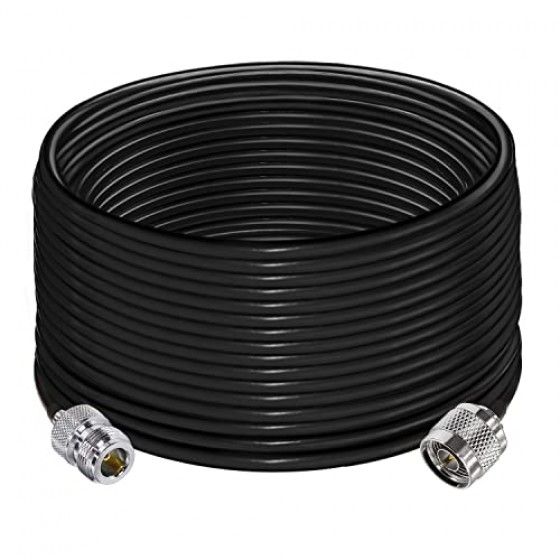

- 1 pc of 49.2ft(15M) N Male to N Female Extension Cable
- Connector 1: N Male
- Connector 2: N Female
- Cable Type: RG58 RF coax cable
Application
- Widely used in Antennas, Router, Monitor, Radio Scanner, Modem, Car Transmitter, CB Radio, Coaxial Cable, Wi-Fi Radios, GPS antenna, RF device, Wireless LAN Devices, Wireless Infrastructure Test equipment etc
Feature:
- The N Male connector is used to connect N Female device, The N Female connector is used to connect N Male device.

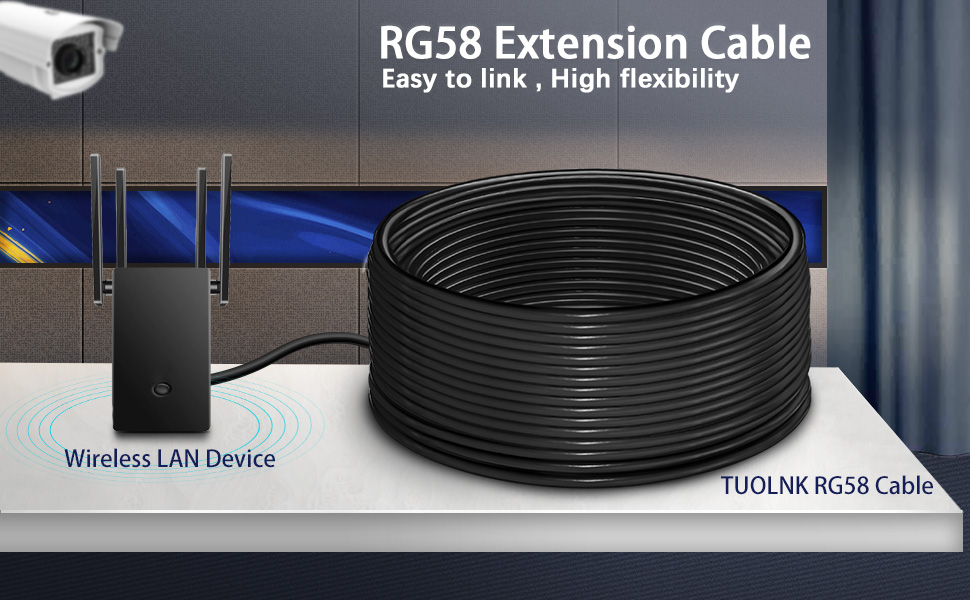

The advantage of RG58 extension cable:
- The RG58 coaxial cable is low loss and high frequency. It is light-weight and flexible.It could be bends according to your demand, improve wiring efficiency.

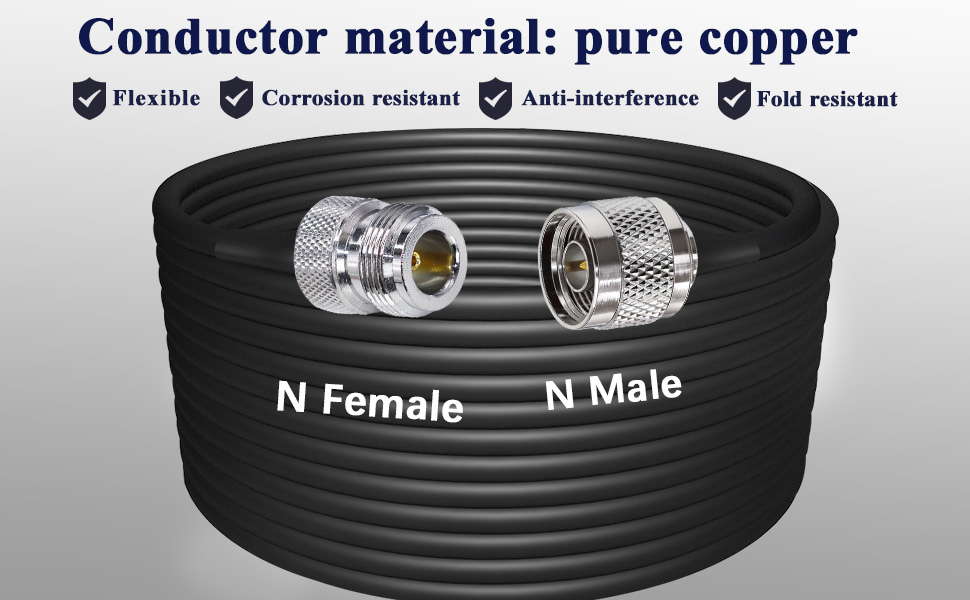

- The inner conductor of RG58 coax cable is made of pure copper to ensure good conductivity and signal transmission.
Attention:
- Please confirm which type of connector your device is needed before purchasing to ensure you got the correct cable.
