Key Specifications
| Polarity | Standard |
| Connector Series | N |
| Connector Gender | Male |
| Impedance | 50 Ohm |
| Body Style | Straight |
| Attachment Method | Clamp/Solder |
| Mount Method | None |
| Minimum Frequency | DC |
| Maximum Frequency | 4 GHz |
| Interface Type 1 | ET38338 |
| Interface Type 2 | ET38337 |
| Interface Type 3 | ET-RG402 |
Description

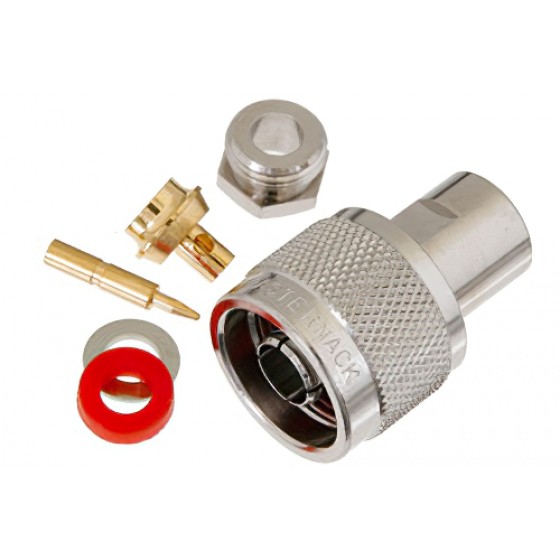

N Male Connector Clamp/Solder Attachment For ET38338, ET38337, ET-RG402
ET10828 type N male coaxial connector has an interface type of ET38338, ET38337, ET-RG402 and a 50 Ohm impedance. Ebeestock type N male connector uses shield/contact clamp/solder as an attachment method. Our male N type coaxial connector provides a minimum frequency of DC and a maximum frequency of 4 GHz.
The Ebeestock type N male coaxial connector has a teflon dielectric type and a VSWR of 1.5. The Ebeestock type N coaxial connector has a brass body with nickel plating. Our ET10828 type N connector uses brass contact. This type N male coaxial RF connector is REACH compliant.
This Ebeestock male type N connector will ship the same day as purchased. Our type N male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom N type connector cable assemblies that will ship the same day as well.
