Key Specifications
| Polarity | Standard |
| Connector Series | SMA |
| Connector Gender | Female |
| Impedance | 50 Ohm |
| Body Style | Straight |
| Attachment Method | Solder/Solder |
| Mount Method | Bulkhead |
| Minimum Frequency | DC |
| Maximum Frequency | 8 GHz |
| Interface Type 1 | ET38321 |
| Interface Type 2 | ET38322 |
| Interface Type 3 | ET-RG405 |
Description

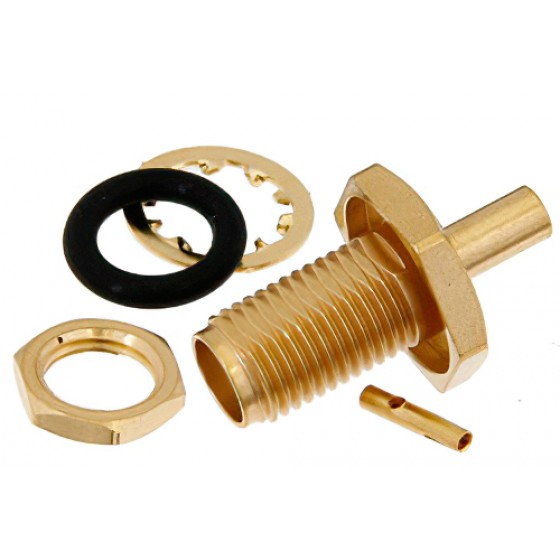

SMA Female Bulkhead Mount Connector Solder Attachment for ET38321, ET38322, ET-RG405, .235 inch D Hole
ET11138 SMA female bulkhead coaxial connector has an interface type of SMA female ET38321, ET38322, ET-RG405 and a 50 Ohm impedance. Ebeestock SMA female bulkhead connector uses shield/contact solder/solder as an attachment method. Our female SMA coaxial connector provides a minimum frequency of DC and a maximum frequency of 8 GHz.
The Ebeestock SMA female bulkhead coaxial connector has a PTFE dielectric type and a VSWR of 1.5. The Ebeestock SMA coaxial connector has a stainless steel body with gold plating. Our ET11138 SMA connector uses beryllium copper contact. This SMA female bulkhead coaxial RF connector is RoHS and REACH compliant.
This Ebeestock female SMA bulkhead connector will ship the same day as purchased. Our bulkhead SMA female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMA connector cable assemblies that will ship the same day as well.
