Key Specifications
| Polarity | Standard |
| Connector Series | SMA |
| Connector Gender | Female |
| Impedance | 50 Ohm |
| Body Style | Straight |
| Attachment Method | Solder |
| Mount Method | Bulkhead |
| Minimum Frequency | DC |
| Maximum Frequency | 18 GHz |
| Interface Type 1 | Thru Hole |
Description

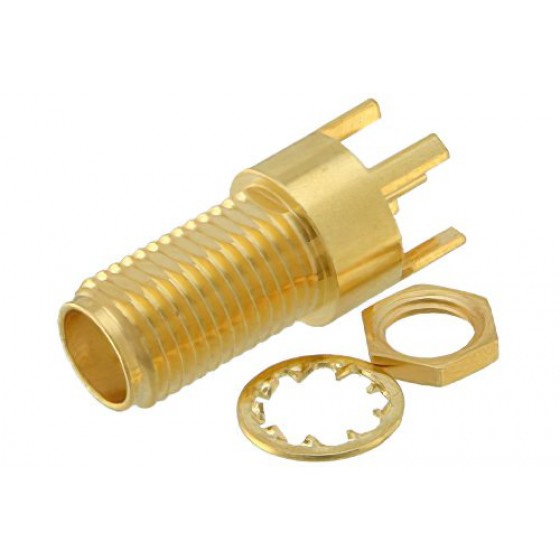

SMA Female Bulkhead Mount Connector Solder Attachment Thru Hole PCB, .235 inch D Hole
ET11330 SMA female bulkhead pcb connector has an interface type of thru hole and a 50 Ohm impedance. Ebeestock SMA female bulkhead connector uses shield/contact solder as an attachment method. Our female SMA pcb connector provides a minimum frequency of DC and a maximum frequency of 18 GHz.
The Ebeestock SMA female bulkhead pcb connector has a PTFE dielectric type. The Ebeestock SMA pcb connector has a brass body with gold plating. Our ET11330 SMA connector uses beryllium copper contact. This SMA female bulkhead pcb RF connector is RoHS and REACH compliant.
This Ebeestock female SMA bulkhead connector will ship the same day as purchased. Our bulkhead SMA female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMA connector cable assemblies that will ship the same day as well.
